| 主要参数 TECHNICAL DATE |
|
最大承载 |
静承载 |
120N/mm2 |
|
硬度 |
HB 90-120 |
|
动承载 |
40N/mm2 |
|
延伸率 |
40% |
|
最高线速度 |
|
2m/s |
|
使用温度 |
-100℃~＋200℃ |
|
最大PV |
|
2.8N/mm2.m/s |
|
摩擦系数 |
0.01~0.05 |
|
抗拉强度 |
|
450N/mm2 |
|
导热系数 |
60W(m.K)-1 |
|
屈服强度 |
|
250N/mm2 |
|
线膨胀系数 |
12x10-6K | |
| |
|
应用特点 APPLICATION CHARACTER |
1.无给油润滑或少给油润滑;
2.高负荷、低速度耐发挥高性能，中速时优于其它轴承;
3.适用于油膜形成困难的往复、摇摆运动频繁起动停止的部位;
4.在运转过程中能形成润滑垫转移，起到保护对摩擦作作，无咬转现象，并增加润滑性;
5.能使机械减少振动，降低噪音，防止环境污染，减少机器保养次数;
6.薄壁结构，质量轻， 可减小机械体积，与JDB-650轴套价格相比节约成本;
7.特别适用于高温，或无法加油及加油非常困难的场合;
8.该产品已应用，汽车启动电机、升降机、吊车及治金机械等 |
 | |
|

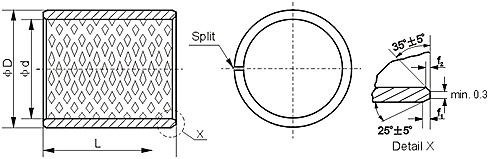

FB09G 标准轴承尺寸 |
 |
| |
|
d |
D |
f1 |
f2 |
L 0
-0.40 |
|
10 |
15 |
20 |
25 |
30 |
35 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
|
10 |
12 |
0.5 |
0.3 |
1010
|
1015
|
1020
|
|
|
|
|
|
|
|
|
|
|
|
12 |
14 |
1210
|
1215
|
1220
|
|
|
|
|
|
|
|
|
|
|
|
14 |
16 |
1410
|
1415
|
1420
|
1425
|
|
|
|
|
|
|
|
|
|
|
15 |
17 |
1510
|
1515
|
1520
|
1525
|
|
|
|
|
|
|
|
|
|
|
16 |
18 |
1610
|
1615
|
1620
|
1625
|
|
|
|
|
|
|
|
|
|
|
18 |
20 |
1810
|
1815
|
1820
|
1825
|
|
|
|
|
|
|
|
|
|
|
20 |
23 |
0.8 |
0.4 |
2010
|
2015
|
2020
|
2025
|
|
|
|
|
|
|
|
|
|
|
22 |
25 |
2210
|
2215
|
2220
|
2225
|
2230
|
|
|
|
|
|
|
|
|
|
24 |
27 |
|
2415
|
2420
|
2425
|
2430
|
|
|
|
|
|
|
|
|
|
25 |
28 |
|
2515
|
2520
|
2525
|
2530
|
|
|
|
|
|
|
|
|
|
28 |
31 |
|
2815
|
2820
|
2825
|
2830
|
|
|
|
|
|
|
|
|
|
30 |
34 |
1.0 |
0.6 |
|
3015
|
3020
|
3025
|
3030
|
3035
|
3040
|
|
|
|
|
|
|
|
32 |
36 |
|
3215
|
3220
|
3225
|
3230
|
3235
|
3240
|
|
|
|
|
|
|
|
35 |
39 |
|
3515
|
3520
|
3025
|
3530
|
3535
|
3540
|
|
|
|
|
|
|
|
40 |
44 |
|
|
4020
|
4025
|
4030
|
4035
|
4040
|
4050
|
|
|
|
|
|
|
45 |
50 |
1.2 |
0.8 |
|
|
4520
|
4525
|
4530
|
4535
|
4540
|
4550
|
|
|
|
|
|
|
50 |
55 |
|
|
5020
|
5025
|
5030
|
5035
|
5040
|
5050
|
5060
|
|
|
|
|
|
55 |
60 |
|
|
5520
|
5525
|
5530
|
5535
|
5540
|
5550
|
5560
|
|
|
|
|
|
60 |
65 |
|
|
|
6025
|
6030
|
6035
|
6040
|
6050
|
6060
|
6070
|
|
|
|
|
65 |
70 |
|
|
|
|
6530
|
6535
|
6540
|
6550
|
6560
|
6570
|
|
|
|
|
70 |
75 |
|
|
|
|
7030
|
7035
|
7040
|
7050
|
7060
|
7070
|
7080
|
|
|
|
75 |
80 |
|
|
|
|
7530
|
7535
|
7540
|
7550
|
7560
|
7570
|
7580
|
|
|
|
80 |
85 |
1.4 |
0.8 |
|
|
|
|
8030
|
8035
|
8040
|
8050
|
8060
|
8070
|
8080
|
|
|
|
85 |
90 |
|
|
|
|
8530
|
8535
|
8540
|
8550
|
8560
|
8570
|
8580
|
8590
|
|
|
90 |
95 |
|
|
|
|
9030
|
9035
|
9040
|
9050
|
9060
|
9070
|
9080
|
9090
|
|
|
95 |
100 |
|
|
|
|
|
|
9540
|
9550
|
9560
|
9570
|
9580
|
9590
|
95100 |
|
100 |
105 |
|
|
|
|
|
|
|
10050
|
10060
|
10070
|
10080
|
10090
|
100100 |
|
105 |
110 |
|
|
|
|
|
|
|
10550
|
10560
|
10570
|
10580
|
10590
|
105100 |
|
110 |
115 |
|
|
|
|
|
|
|
11050
|
11060
|
11070
|
11080
|
11090
|
110100 | |
| |
|
d |
D |
f1 |
f2 |
L 0
-0.40 |
|
25 |
30 |
35 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
|
115 |
120 |
1.4 |
0.8 |
|
|
|
|
11550
|
11560
|
11570
|
11580
|
11590
|
115110
|
|
120 |
125 |
|
|
|
|
|
12060
|
12070
|
12080
|
12090
|
120110
|
|
125 |
130 |
|
|
|
|
|
12560
|
12570
|
12580
|
12590
|
125110
|
|
130 |
135 |
|
|
|
|
|
13060
|
13070
|
13080
|
13090
|
130110
|
|
135 |
140 |
|
|
|
|
|
13560
|
13570
|
13580
|
13590
|
135110
|
|
140 |
145 |
|
|
|
|
|
14060
|
14070
|
14080
|
14090
|
140110
|
|
145 |
150 |
|
|
|
|
|
14560
|
14570
|
14580
|
14590
|
145110
|
|
150 |
155 |
|
|
|
|
|
15060
|
15070
|
15080
|
15090
|
150110
|
|
155 |
160 |
|
|
|
|
|
15560
|
15570
|
15580
|
15590
|
155110
|
|
160 |
165 |
|
|
|
|
|
16060
|
16070
|
16080
|
16090
|
160110
|
|
165 |
170 |
|
|
|
|
|
16560
|
16570
|
16580
|
16590
|
165110
|
|
170 |
175 |
|
|
|
|
|
17060
|
17070
|
17080
|
17090
|
170110
|
|
175 |
180 |
|
|
|
|
|
17560
|
17570
|
17580
|
17590
|
175110
|
|
180 |
185 |
|
|
|
|
|
18060
|
18070
|
18080
|
18090
|
180110
|
|
185 |
190 |
|
|
|
|
|
18560
|
18570
|
18580
|
18590
|
185110
|
|
190 |
195 |
|
|
|
|
|
19060
|
19070
|
19080
|
19090
|
190110
|
|
195 |
200 |
|
|
|
|
|
19560
|
19570
|
19580
|
19590
|
195110
|
|
200 |
205 |
|
|
|
|
|
20060
|
20070
|
20080
|
20090
|
200110
| |
